产品介绍
从事灯光音响、影视器材、广电设备、舞美设施的批发销售

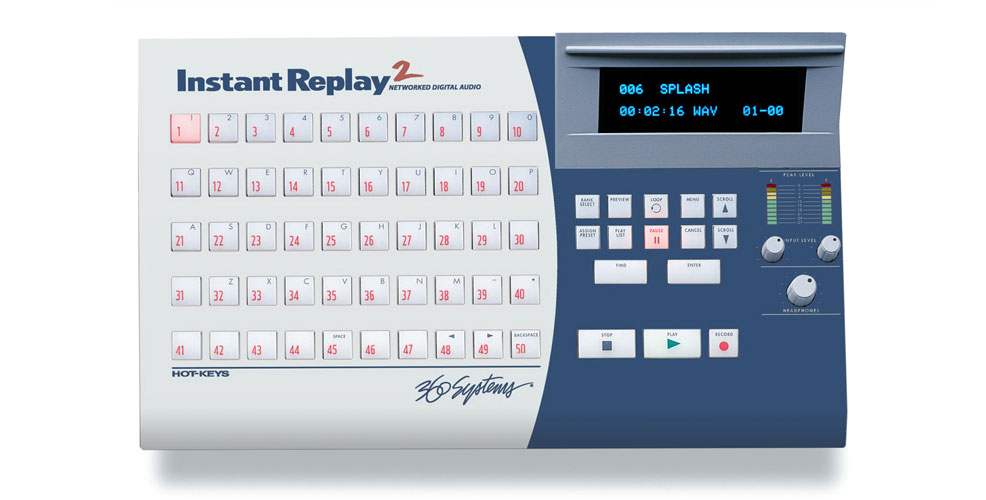

360 Systems Instant Replay2 DR600 硬盘录音播放机
360 Systems DR600硬盘录音机 多轨录音机 即时播放硬盘录音机 360 Systems Instant Replay2 DR600硬盘录音播放机 360 Systems DR600硬盘录音机即时播放硬盘录音机 360 systems instant replay 2 dr-600 dr600硬盘录...
360 Systems DR600 硬盘录音机 多轨录音机 即时播放硬盘录音机
360 Systems Instant Replay2 DR600 硬盘录音播放机
360 Systems DR600 硬盘录音机即时播放硬盘录音机
360 systems instant replay 2 dr-600 dr600 硬盘录音机 即时播放硬盘录音机
360个系统进入广播设备业务与instant replay2
即时replay2 网络数字音频 即时声音效果?音乐瞬间?瞬间的乐趣
360系统的新的即时replay2场所1000音频削减在你的指尖!即时访问您自己创建的一个完整的音频库。
中期市场大规模性能
超过3000的360系统的视频服务器提供的内容在美国和世界。
即时创造力
包起来的道路上,或安装在录音室和控制室。即时重放的设计创意的人需要速度适宜反应,直观的操作,和品良的音频。
这是一个全部独立的工作室,在一个盒子里发现的球员。而且,不像个人电脑,即时重放具有优良的按钮直接。
直观的操作简单的控制,使操作全部透明的。即时重放记录比cd质量的音频直接到硬盘,编辑它,然后提供播放50个热键。
发挥你立即削减,以任何顺序,所需的次数。当音频元素在一系列特别需要,即时回放创建播放列表,和存储以供将来使用。
储存备用即时回放存储的立体24小时大量内部硬盘。没有对切割长度记录任何从短音效全长音乐表演的限制。
即时重放总是提供优良音频质量,零延迟。即时重播2排在五十十的银行削减每个音频,所以相关的音效或音乐提示可存储在一起。
内置的键盘更容易给各切一个名字和值得信赖的id号现在的网络现在,即时重播包含一个100 mb的以太网端口传输文件从pc机速度适宜备份整个音频库,
或转移到pc的音频编辑-这是point-n-click一样容易。
原始的360系统的新的即时replay2是**的无线电,电视,音频/视频,或生活事件的任何应用程序在质量效应的发挥你自己的音乐或音频库。
即时重放-原热键的音频播放器instant replay 2 dr-600 拥有原有型号dr-554e 所有的功能:
以太网网络功能,这一功能利用以太网,来传送音频的档案,让两台或以上的机器,连接成网络,之间的音频档案就可以高速地传送,互相交换;
支持16和24比特,44.1khz及48khz数字录音格式,48khz的取样频率,优良方便了与现在数字电视广播的音频的接入;
支持wav音频格式;内置硬盘**达24小时立体声节目储存。
提供平衡+4dbu及非平衡的-10dbv的输入和输出,让机器直接与非平衡设备的接入。
面板设有50个播放热键,声音一按即现
满足广播电视对各类型音频文件的储存和播放,例如广告、音乐、信息、专题和现场演出音频播放等。
音频:模拟平衡输入和输出(卡龙接口)和数字aes/ebu输入和输出(卡龙接口)、耳机输出
技术规格:
音频格式:16/24-bit 立体声,48k 或44.1k 线性pcm
频率响应:在20hz到20khz范围内(±0.5db)
动态范围:>90 db
总谐波失真+噪声(在48k,线性):<0.005%
总记录时间:> 250 hours @ 44.1k, 16-bit
功能:dr554e为立体声设计,面版设有50个放音控制热键,随时可以编排播放清单,声音一按即现。新增的editing tools 让你检索声音的头、尾段,并可设定淡入、谈出即声音的电平增益,带给你方便速度适宜的操作。平衡模拟输入和输出,平衡数字输入和输出接口,杜比ac-2 24小时录音,4小时16比特线性录音,24khz-56khz输入频率自动转换为48khz/44.1khz。d-net文件速度适宜传送交换接口。
全新版本-scsi接口可外接磁盘驱动器以增加容量,可选择线性或doldy,ac-2录音格式。
instant replay(即时重放机)可使使上千个音频片断随手可得。您可随时存取音响效果,音乐片断,电台号码等多达24小时的存储资料。
它有50个热键,可让您在播放节目时随心所欲的创作发挥。即时重放机速度适宜,操作易,其乐以质为本。

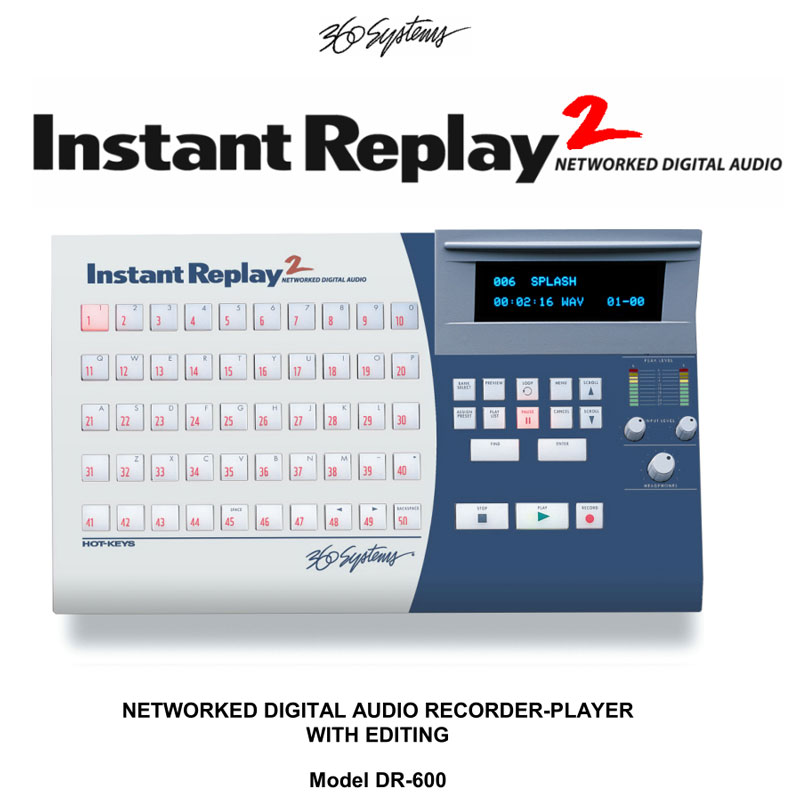

Instant Replay 2
Ethernet networking for file transfer and backup
16 / 24-bit, 44.1K / 48K recording formats
Balanced audio at +4, plus RCA jacks at -10 on
Precise editing of heads, tails, fades and levels
Large illuminated buttons for easy hands-on operation
Displays cut names, ID numbers, and length
Store multiple playlists of any size
prod_IR_diagram1
Instant Creativity
Pack it up for the road, or install it in the studio or control room. Instant Replay is designed for creative people who need quick response, intuitive operation, and top-quality audio. It’s a completely self-contained production studio and spot player in a box. And, unlike PCs, Instant Replay has the immediacy of real buttons.
Intuitive operation
Straightforward controls make operation completely transparent. Instant Replay records better-than-CD-quality audio directly to hard disk, edits it, and then provides playback from 50 hot-keys. Play your cuts instantly, in any order, as many times as needed. When audio elements are needed in a special sequence, Instant Replay lets you build playlists, and store them for future use.
Storage To Spare
Instant Replay stores 24 hours of stereo on its large internal hard disk. There’s never a restriction on cut length – record anything from a short sound effect to full-length musical performances. Instant Replay always delivers premium audio quality, with zero delay.
Powerful editing tools do head and tail trims, fade-ins, fade-outs, and even gain changes. Now it’s easy to extract sound effects from a bed, or make loops of music and ambient effects.
Find Audio Clips Fast
Instant Replay 2 arranges audio in 10 banks of 50 cuts each, so related sound effects or music cues can be stored together. The built-in keyboard makes it easy to give each cut a name and unique ID number.
Now With Networking
Now, Instant Replay includes a 100 MB Ethernet port for transferring files to and from a PC. Quickly back up your entire audio library, or transfer audio to a PC for editing – it’s as easy as point & click.
The Original
360 Systems’ new Instant Replay2 is perfect for radio, television, audio/visual, or live events – any application where quality music or effects play from your own audio library. Instant Replay – the original hot-keys audio player.
Ethernet networking for file transfer and backup
16 / 24-bit, 44.1K / 48K recording formats
Balanced audio at +4, plus RCA jacks at -10 on
Precise editing of heads, tails, fades and levels
Large illuminated buttons for easy hands-on operation
Displays cut names, ID numbers, and length
Store multiple playlists of any size
AUDIO PERFORMANCE
Audio Format 16/24-bit stereo, 48k or 44.1 k linear PCM
Input Sample Frequencies 24k to 56k samples/second, converted to 44.1 k or 48k via sample rate converter
Analog Inputs Balanced, XLR-3F connectors; Zin = 15K-ohm Unbalanced RCA connectors; Zin = 10K-ohm
Maximum Input Level +27dBu balanced
Input CMRR >80 dB@60Hz
Analog Outputs Balanced, XLR-3 connectors, +4dBu Unbalanced RCA connectors, -10dBV
Maximum Output Level +24dBu balanced
Frequency Response 20Hz to 20kHz ± 0.5dB
Dynamic Range > 90dB
THD+N (@ 48k linear) < 0.005%
Digital I/O AES/EBU data on XLR-3 connectors AES3-1D data on RCA jacks IEC-958 type II (semi-pro) on RCA jacks
GENERAL SPECIFICATIONS
Total Recording Time > 250 hours @ 44.1 k, 16-bit
Recording Medium 3.5″ internal hard disk
Maximum Number Of Cuts 1,000
Maximum Cut Length Equal to remaining time on disk
File Import/Export WAV Files
File Backup FTP via 100 Mb Ethernet port
Audio Level Metering LED bar graph display, 2-channel, peak-reading
Display 2 line x 20 character, vacuum fluorescent
Panel Buttons Illuminated, silent action
MECHANICAL/MISCELLANEOUS
Headphones Stereo 1/4″ (6.35mm) jack, with level control
Power Requirements 95 to 240 volts, 50/60Hz, 25 watts
Dimensions 5″ x 15″ x 9″ (127mm x 381mm x 229mm)
Weight 9.5 Ibs. (4.3kg) net
Agency Approvals UL, C-UL, FCC Class A, CE, RoHS
Country of Origin USA
Specifications subject to change without notice. 360 Systems Instant Replay and 360 Systems are registered trademarks of 360 Systems in the US and other countries. © 2014 by 360 Systems.
