Sennheiser 森海塞尔 ADN IK1 嵌入式桌面安装底座
Sennheiser 森海塞尔 ADN IK1 嵌入式桌面安装底座

Sennheiser 森海塞尔 ADN IK1 嵌入式桌面安装底座

立即订购

Sennheiser 森海塞尔 ADN IK1 嵌入式桌面安装底座

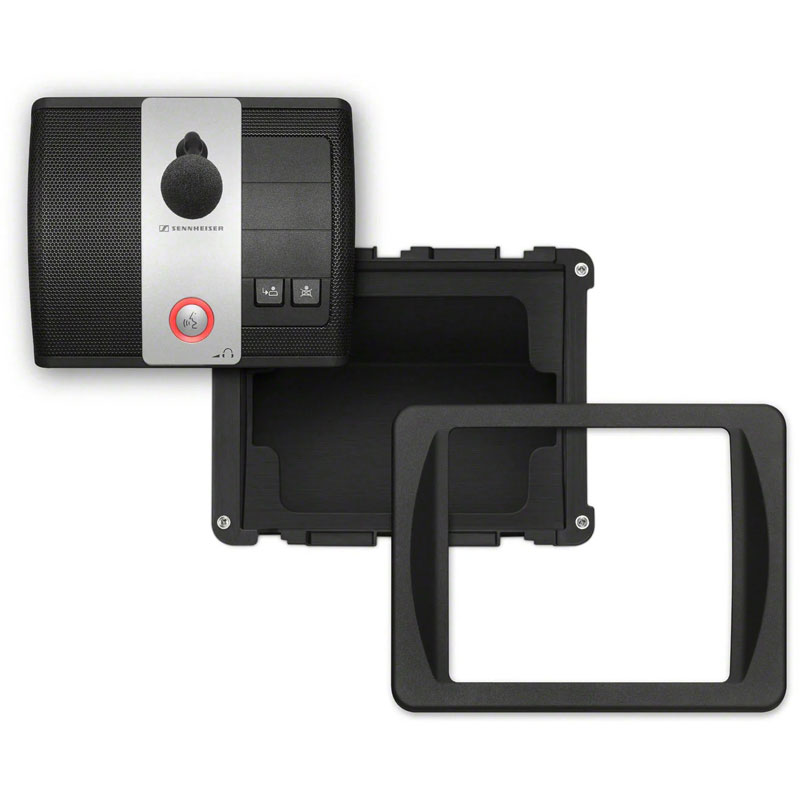

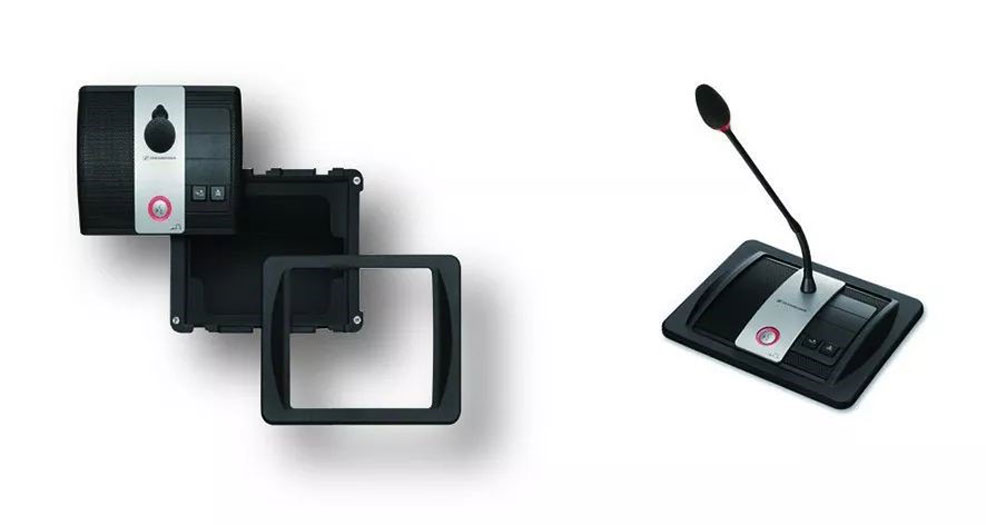

ADN IK1嵌入式套件用于将ADN C1(主席单元)和ADN D1(代表单元)嵌入在桌面内。

ADN IK1

ADN Installation Kit for flush mounting ADN D1 (Delegate Unit) or ADN C1 (Chairman Unit) in table tops

概述

The ADN Installation Kit allows a very easy and elegant installation of ADN D1 or C1 wired units into conference tables.

One set comes with 5 units of Top and Bottom frames for easy installation of the ADN conference units.


包装内含

5 sets of top and bottom pieces to flush mount 5 ADN conference units (Delegate or Chariman Units)

20 screws (4 for each pair of brackets)

1 mounting instruction

技术数据



尺寸

Outer dimensions (top cover): 225 x 175 mm,

Height over table top: 19 mm

Base frame depth: 26 mm

Minimum table top thickness 20 mm: (avoids screw tip on table top bottom side), 26 mm (avoids base frame deeper than table top bottom)

重量:Top frame 50g, bottom frame 90g

颜色:Black. Other colors possible on request

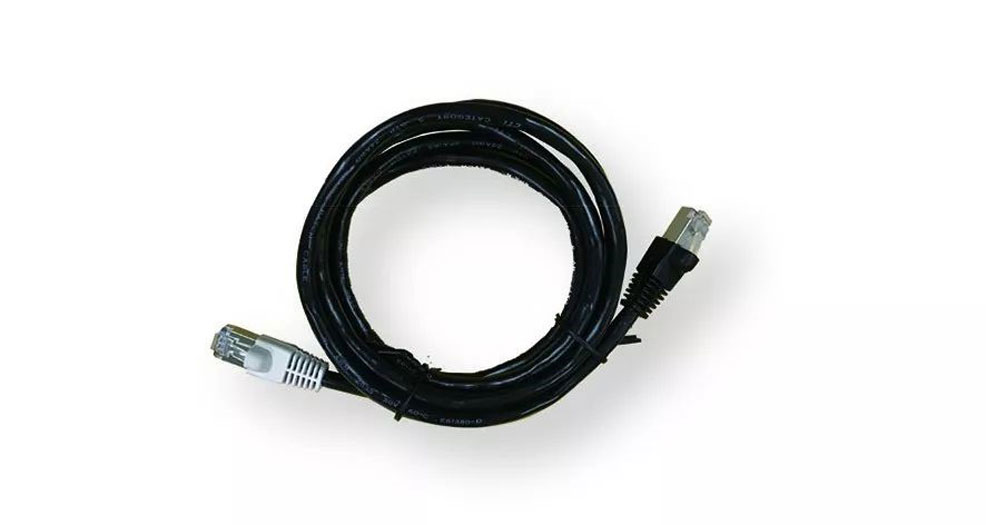

SDC CBL RJ45-2/3/5网线



带屏蔽的五类双绞线

长度:2m,3m,5m,可选

规格:AWG24

镀金接头


SDC CBL RJ45-10/20/50网线

带屏蔽的五类双绞线

长度:10m,20m,50m,可选

规格:AWG24

镀金接头


选择ADN/ADN-W系统的六大理由

优化的语音清晰度和可懂度

设置简便并且稳定优良

满足未来发展的需求

降低系统实现的成本

低调化产品设计

无线化集成实现

系统优势:

优化指向性的话筒能够实现更自由的讲话位置

具有音响效果平衡性的音箱能够实现比较舒适的听音效果

声反馈和背景噪声将会被效果优良地得以阻止

XLR Mix Minus 模式能够效果优良地防止在远程会议系统中出现令人不悦的回声效果
